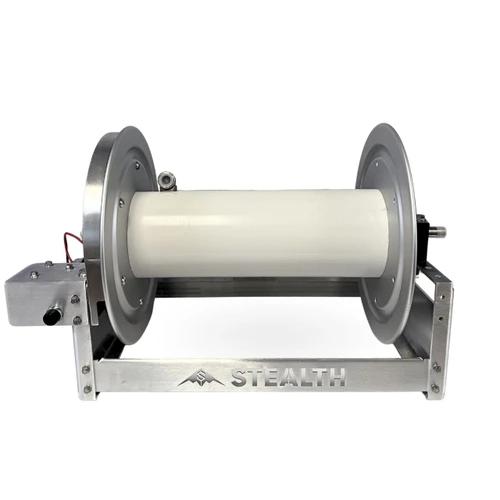

The Stealth Electric 18" Aluminum Full Frame Hose Reel is a powered commercial hose reel designed for pressure washing, soft washing, water transfer, agricultural spraying, and other high-flow applications. It combines push-button hose retrieval with a corrosion-resistant aluminum frame, a fully welded 3/4-inch stainless steel manifold, and an included stainless steel swivel.
Manual hose retrieval consumes time and operator energy at the end of every job. The electric rewind system retrieves long runs of heavy hose without repetitive hand cranking, helping crews complete breakdown faster and reducing strain on the hands, shoulders, arms, and back.
The 3/4-inch flow path ensures zero bottlenecks for high-volume operations. It delivers unrestricted flow for high-GPM pressure washers, supply lines, fast-fill tank systems, and heavy-duty soft wash setups that choke on smaller plumbing.
A powerful motor also places greater torque on the reel assembly. Stealth supports that load with a full aluminum frame, reinforced welded construction, stainless steel plumbing, and greasable stainless steel pillar blocks built for repeated commercial use.
This is not simply a manual reel with a motor attached. It is a productivity tool designed to save labor, preserve operator energy, and help contractors move from one revenue-producing job to the next with less downtime.
STEALTH HOSE REELS
REEL GUIDE
Running 1/2″ hose (7/8″ O.D.)? The 18″ spool holds 125 ft more.
SPOOL SIZE
REWIND
MANIFOLD & SWIVEL
YOUR PART NUMBER
SHR-18S-012
Hand crank · 18″ spool · 1/2″ FNPT
CAPACITY BY HOSE I.D.
1/4″625 ft
3/8″450 ft
1/2″325 ft
5/8″225 ft
Why Professional Contractors Choose an Electric Hose Reel
An electric hose reel turns hose retrieval from a manual task into a push-button process. The operator guides the hose while the powered drum performs the repetitive work.
For contractors completing several jobs per day, the time saved during breakdown can add up across every crew, route, and workweek. Faster retrieval also helps operators maintain productivity late in the day when fatigue normally slows manual cranking.
The electric reel provides particular value for:
- Long hose runs
- Heavy, water-filled hose
- Multi-job service routes
- Solo operators
- High-volume pressure washing crews
- Truck, trailer, and skid-mounted systems
- Operators seeking less repetitive physical strain
What Is the Benefit of the 3/4" Manifold?
A 3/4-inch manifold provides a larger internal flow path than a 1/2-inch manifold. This can help preserve water volume in high-flow systems, especially when the reel carries large-diameter hose or supports long hose runs.
The 3/4-inch configuration is best suited for:
- High-flow soft wash systems
- Water-supply hose
- Tank-fill hose
- Water-transfer pumps
- Agricultural spraying
- Commercial wash systems
- Large-diameter chemical hose
- Equipment requiring minimal flow restriction
Frequently Asked Questions
Why choose an electric hose reel instead of a manual reel?
An electric hose reel retrieves hose with powered drum rotation instead of manual cranking. It reduces repetitive physical effort, speeds up jobsite breakdown, and makes long or heavy hose easier to manage.
Does the electric reel pull the hose in by itself?
The motor rotates the drum, but the operator should still guide the hose evenly across the reel. Proper hose guidance prevents bunching and supports consistent rewinding.
Should I choose the 1/2" or 3/4" version?
Choose the manifold size based on the hose diameter, pump flow, system plumbing, and intended application. The 3/4-inch version is generally preferred for higher-flow systems and larger hose, while the 1/2-inch version may be appropriate for standard pressure washing or soft wash hose configurations.
Is the stainless steel swivel included?
Yes. The reel includes a stainless steel swivel as standard equipment.
Can the reel be mounted on a trailer or skid?
Yes. The full-frame design is intended for installation on trailers, skids, service trucks, flatbeds, and other commercial equipment platforms.
Can multiple Stealth reels be stacked?
Yes. Stealth stacking kits and stainless steel mounting hardware allow compatible reels to be installed vertically where the equipment layout permits.
Features
Push-Button Powered Hose Retrieval
The electric rewind system retrieves hose without repetitive manual cranking. It helps operators complete jobsite breakdown faster while reducing strain on the upper body.
Built to Buy Back Time
Powered retrieval shortens one of the most repetitive parts of pressure washing and soft washing. Crews can pack up sooner and move to the next job with less downtime between properties.
Reduces Operator Fatigue
The motor handles the repetitive drum rotation while the operator guides the hose. This reduces continuous stress on the hands, wrists, shoulders, arms, and back.
3/4" High-Flow Stainless Steel Manifold
The fully welded 3/4-inch stainless steel manifold supports higher-volume systems and reduces unnecessary flow restriction compared with smaller manifold configurations.
Included Stainless Steel Swivel
The reel includes a stainless steel swivel as standard equipment. Its corrosion-resistant construction supports smooth drum rotation in pressure washing, soft washing, and chemical-handling environments.
Corrosion-Resistant Aluminum Full Frame
The aluminum frame resists rust caused by weather, road exposure, water, and cleaning environments while keeping the assembly lighter than comparable steel-frame reels.
Built for Electric Motor Torque
Powered retrieval creates more rotational force than manual cranking. The full-frame construction, reinforced welds, stainless manifold, and support components help the reel manage that torque under a loaded hose.
Fully Welded Plumbing
The welded stainless steel manifold eliminates unnecessary threaded manifold joints that can loosen, corrode, or develop leaks during repeated commercial use.
Protected Greasable Stainless Steel Pillar Blocks
The stainless steel pillar blocks support the reel drum and provide smooth, serviceable rotation. Grease fittings allow routine maintenance for long-term use.
Reinforced Commercial Construction
Seamless exterior welds and reinforced interior corners strengthen the reel against vibration, road travel, loaded hose retrieval, and pressure-system shock.
Brushed Aluminum Finish
The brushed aluminum surface provides a clean commercial appearance while remaining suitable for exposed truck, trailer, and skid installations.
Flexible Mounting Options
The full-frame design allows installation on pressure washing trailers, soft wash skids, service trucks, flatbeds, and custom equipment packages.
Stackable Reel Platform
Compatible stacking hardware allows multiple Stealth reels to be installed in a compact vertical configuration when space is limited.
| Specifications | Details |
| Brand | Stealth |
| Part Number | SHRE-18S-034 |
| Product Type | Electric full-frame hose reel |
| Reel Size | 18 inches |
| Rewind Type | Electric powered rewind |
| Frame Material | Corrosion-resistant brushed aluminum |
| Manifold Size | 3/4" |
| Manifold Material | Stainless Steel |
| Swivel Material | Stainless Steel |
| Swivel | 3/4" Included |
| Stacking Compatibility | Compatible with Stealth hose reel stacking kit and most other brands |
| Overall Dimensions | 30.5" L x 17.25" W x 17.5" H |
| Dry Weight | 43 lbs |
Recommended Applications
- High-Flow Soft Wash Systems
- Pressure Washing Trailers
- Pressure Washing Skids
- Water-Supply Hose Management
- Tank-Fill Hose Reels
- Water-Transfer Systems
- Agricultural Spraying Equipment
- Commercial Wash Rigs
- Fleet Washing Systems
- Heavy Equipment Cleaning
- Industrial Washdown Systems
- Building Maintenance Equipment
- Mobile Service Trucks
- Custom Skid Builds
- Multi-Reel Trailer Installations
